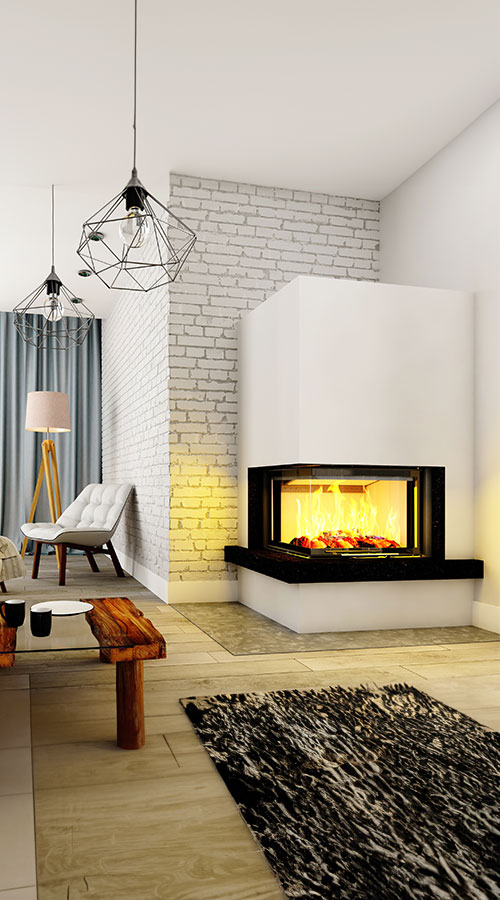

HomezInnoImperial Extra V2 wide / left-glazed or right-glazed (configurable)

The HomezInnoImperial Extra V2 fireplace kit with the innovative fireplace insert Volcano WLTH 12 offers an excellent solution for stylish warmth and environmentally friendly heating in your home. Manufactured using the latest technologies and materials from leading global manufacturers, this fireplace insert provides an efficient way to heat your home and heat domestic hot water.
Thanks to its water jacket, the Volcano WLTH 12 can be seamlessly connected to your existing central heating system, whether it runs on gas, heating oil or a heat pump. By integrating a buffer storage tank and connecting a solar system, it enables maximum savings on heating costs.

The high-quality construction of boiler steel and the first-class combustion chamber lining make this fireplace insert the ideal investment, even for energy-efficient houses. With an efficiency of over 80% to 90% and low exhaust gas values in accordance with BImSchV Level 2, it not only provides warmth but also environmental compatibility.
For added convenience and ease of use, the Volcano WLTH 12 features an external combustion air supply for a healthy indoor climate and a glass rinse for a clear view of the flames. The throttle valve allows for precise power regulation in the range of 3 to 9 kW to ensure optimal heat output.

All in all, the HomezInnoImperial Extra V2 fireplace kit with the Volcano WLTH 12 is an outstanding choice for those who value efficiency, environmental friendliness and comfort.

This fireplace insert is certified and approved for all of Europe. All important and strict European standards EN 13240, EN 13229 and DIN 18895 are met. Of course, the requirements of the German Federal Emission Protection Regulation (BImSchV) Level 2, Art. 15a B-VG of Austria and LRV of Switzerland are also met. Thus, with this fireplace insert, you get a fireplace for the future!

The fireplace is lined with fireclay bricks that are at least 5 cm thick. This gives you the best possible heat storage value, even when the fire is no longer burning.

The innovative self-cleaning glass system ”

Clear View” keeps the glass perfectly clean. The CLING lift-up door mechanism with counterweight allows for convenient and comfortable opening of the combustion chamber door. It opens with very little force.

Energy efficiency

Advantages of the HomezInnoImperial Extra V2 wide fireplace insert

• This fireplace insert with a water jacket undergoes thorough pressure and leak testing at our special control station before shipment.

• With a thermal efficiency of up to 90%, our fireplace inserts with a water jacket set new standards. Such excellent results were previously only known from air-heating fireplace inserts.

• The entire fireplace of our fireplace inserts with water jacket is lined with fireclay, which leads to higher and more stable temperatures in the combustion chamber compared to fireplace inserts without a fireclay insert.
• Our fireplace inserts are equipped as standard with a cooler that consists of a special corrugated coil pipe made of acid-resistant steel and provides additional overheating protection.

• Thanks to the internal heat exchanger, consisting of a special corrugated coil pipe of appropriate length immersed in the water jacket, our fireplace inserts can be easily connected to the central heating system without the need for an external plate heat exchanger.

• Our fireplace inserts meet the most demanding European standards, including EN 13240, as well as the requirements of the BImSchV Level 2, Art. 5a B-VG of Austria and LRV of Switzerland.
• The chimney hood is firmly attached to the body without the use of sealing materials or screws; everything is welded.

• The Clear View system ensures automatic window cleaning, while the Jet Stream air supply and distribution system ensures efficient combustion.
• A removable ash pan makes cleaning easier, and fireproof ceramic panels provide added safety.
• Our products meet European standards EN 13229 and DIN 18895, which allows us to sell them throughout Europe.



Technical data:

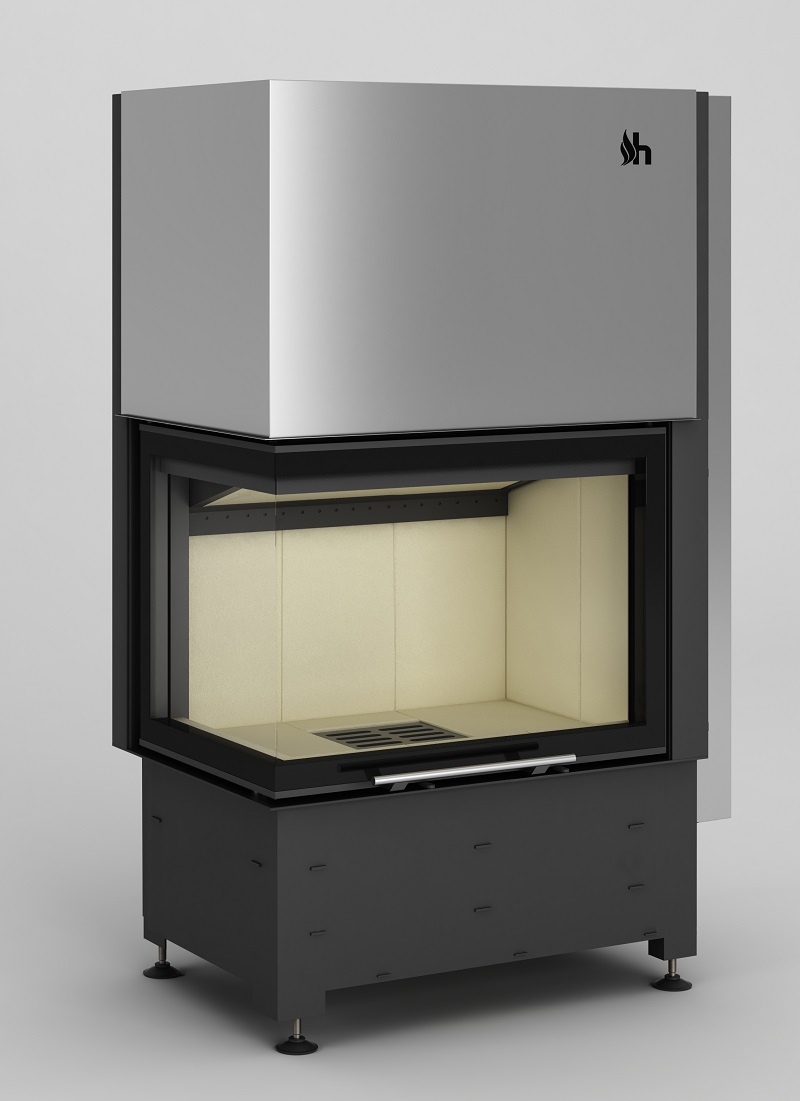

Model: Hajduk Volcano W(L/P)TH 12 water-bearing fireplace insert, glazed, frameless, with frameless lifting door with curved glass

• Nominal heat output: 12 kW
• Air side: 6 kW and water side: 6 kW
• Energy efficiency class: A+
• Water content: 50 L
• Max. operating pressure: 2.5 bar

• Dimensions of the fireplace insert: Height: 133.3 x Width: 85.5 x Depth: 60 cm
• Dimensions of the fireplace kit (see pictures and download area): Height: 196.0 cm x Width: 115.0 cm x Depth: 82.0 cm
• Dimensions of glass: Height: 51 cm x Width: 71 cm x 49 cm

• Weight: 330 kg
• Flue pipe diameter: 200 mm can be reduced to 180 mm with the approval of the chimney sweep.
• Position of flue pipe connection: Top
• Diameter of external air supply connection: 150 mm
• Position of external air supply connection: Bottom
• Fuel: Logs
• Wood consumption: 3.7 kg/h

• Max. length of split logs: 50 cm

Fireplace insert features:

• Purging of the glass – Clear view of the fire – Airflow in front of the glass pane minimizes soiling of the glass
• Connection for external air supply – Can be connected optionally – With the external air supply, you can heat the stove with air from an adjoining room or from outside. This has a positive effect on the room climate, as no oxygen is burned from the room. The connection for the external air supply also allows an electronic combustion air control to be connected.
• 24-hour operation possible
• Cast-iron ember grate and ash pan
• Base with adjustable feet
• Firebox with fireclay - stores the heat



Fireplace kit includes:

• Specially made cladding
• Steel supporting frame
• Fireplace base
• Crossbeam
• Lower ledge: 3 cm
• Hot air grille in the base area of the cladding: 1 piece 80 cm x 9 cm and 1 piece 40 cm x 9 cm - available in 4 different colors

• Hot air grille in the hood area of the cladding: 1 piece 17 x 49 cm in the lid of the hood (top - not visible) or 2 pieces 17 x 37 cm on the sides of the hood - available in 7 different colors and 2 variants. For later maintenance work, for example on the thermal discharge protection, we recommend the ventilation grilles on the side.

• Installation materials: 2 flue pipe bends, 1 wall sleeve, 1 bag of glue (25 kg), 1 flue pipe spiro, 4 SILCA panels, plaster, corner plaster blocks, facade mesh
• stone elements and a sinter selectable from: Nero Assoluto Polished, Crema Marfil, Padang Dark, Star Galaxy, Giallo Rena, Sinter Oxide Grigio.

• Weight of building materials: approx. 150 kg



Data for the chimney sweep:

• Design A1 - self-closing fire door (multiple occupancy of the chimney): Yes, optional
• Federal Emission Control Ordinance (BImSchV): 1st stage: Yes, 2nd stage: Yes
• §15a B-VG (Austria): Yes
• VKF Switzerland: Yes

• CE mark: Yes
• Dust: 0.010 mg/Nm³
• Carbon monoxide (CO): 1.00 g/Nm³
• Efficiency: 82 %
• Exhaust gas temperature: 240°C
• Exhaust gas mass flow: 10.5 g/s
• Minimum conveying pressure: 12 Pa
