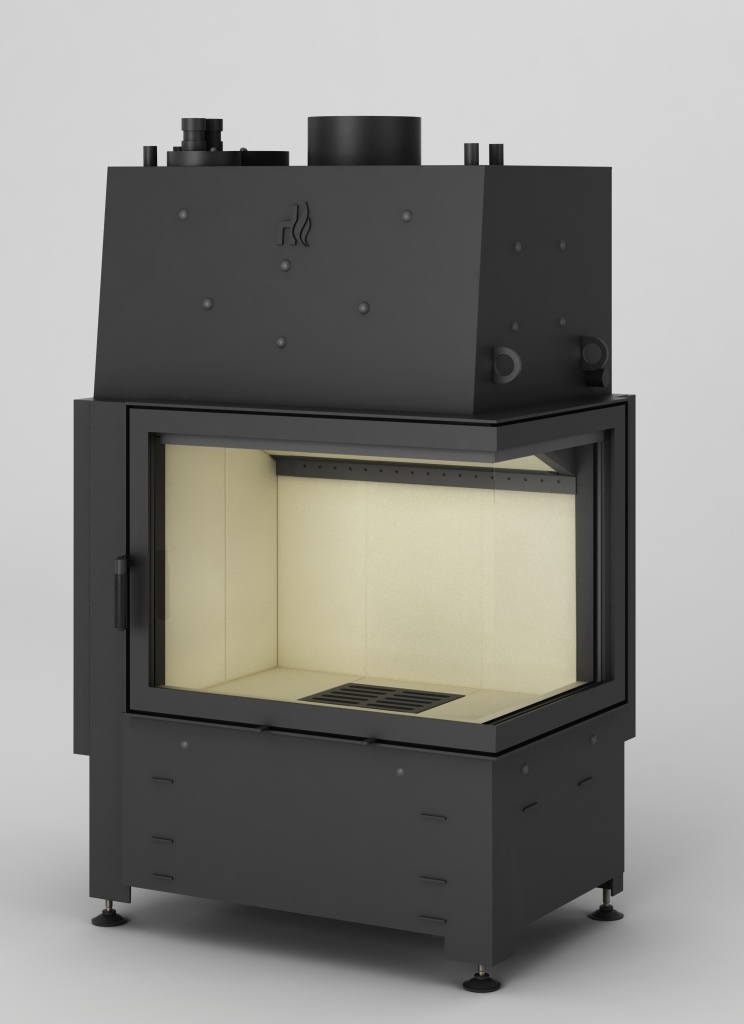

Volcano WP-18

Volcano WP-18 water-bearing fireplace insert - 18kW - side opening to the right

Nominal heating output: 18kW
Exhaust outlet: fi200
Door: flat pane - opens to the right
Weight: approx. 340kg
Description: fireplace insert with water jacket with thermal discharge protection
The Volcano WP-18 fireplace insert is an environmentally friendly and energy-efficient way to effectively heat your living spaces and your home during the cold winter months. It creates a pleasant and cozy atmosphere with a crackling sound and atmospheric lighting. Thanks to its three-sided glazing, you can view the fire from all sides and enjoy the unique atmosphere.
Fireplace inserts with a water jacket are particularly efficient at heating and help to save heating costs. The Volcano WP-18 has an efficiency rate of 80% to 90% and meets the BImSchV Level 2 with low exhaust gas values.
This fireplace insert is approved throughout Europe and meets all major European standards, including EN 13240, EN 13229 and DIN 18895. It also meets the requirements of the BImSchV Stufe 2, Art. 15a B-VG of Austria and LRV of Switzerland. The Volcano WP-18 fireplace insert is therefore a future-proof choice for your home.
The innovative self-cleaning system of the “Clear View” window keeps the window perfectly clean. The fireplace is lined with fireclay bricks that are at least 5 cm thick. This allows you to achieve the optimum heat storage value, even when the fire has gone out.

Technical data:

• Rated heat output: 12 kW
• Dimensions: Height: 1205mm x Width: 784mm x Depth: 559mm
• Door dimensions: Height: 510mm x Width: 670mm
• Weight: 340 kg
• Energy efficiency class: A+
• Maximum water pressure: 2.5 bar

• Diameter of flue gas outlet: 200 mm, outlet at the top
• Diameter of external air supply: 150 mm, outlet at the side below
• Federal Emission Control Ordinance (BImSchV): 1st stage: Yes, 2nd stage: Yes
• §15a B-VG (Austria): Yes
• VKF Switzerland: Yes
• CE mark: Yes
• Dust: 0.010 mg/Nm³

• Carbon monoxide (CO): 1.00 g/sm³
• Efficiency: 82 %

• Flue gas temperature: 240°C
• Flue gas mass flow: 10.5 g/s
• Minimum draught pressure: 12 Pa
• Fuel: split logs
• Max. length of split logs: 50 cm
• Wood consumption: 3.7 kg/h
• Design A1 self-closing door (multiple chimney use): Yes
• 24-hour operation: Yes
• Purging of the window: Yes
